KraftMach 13,500lb Electric Winch — 12V/24V | IP67 Waterproof | 27m Steel Rope | Wired Remote

Description

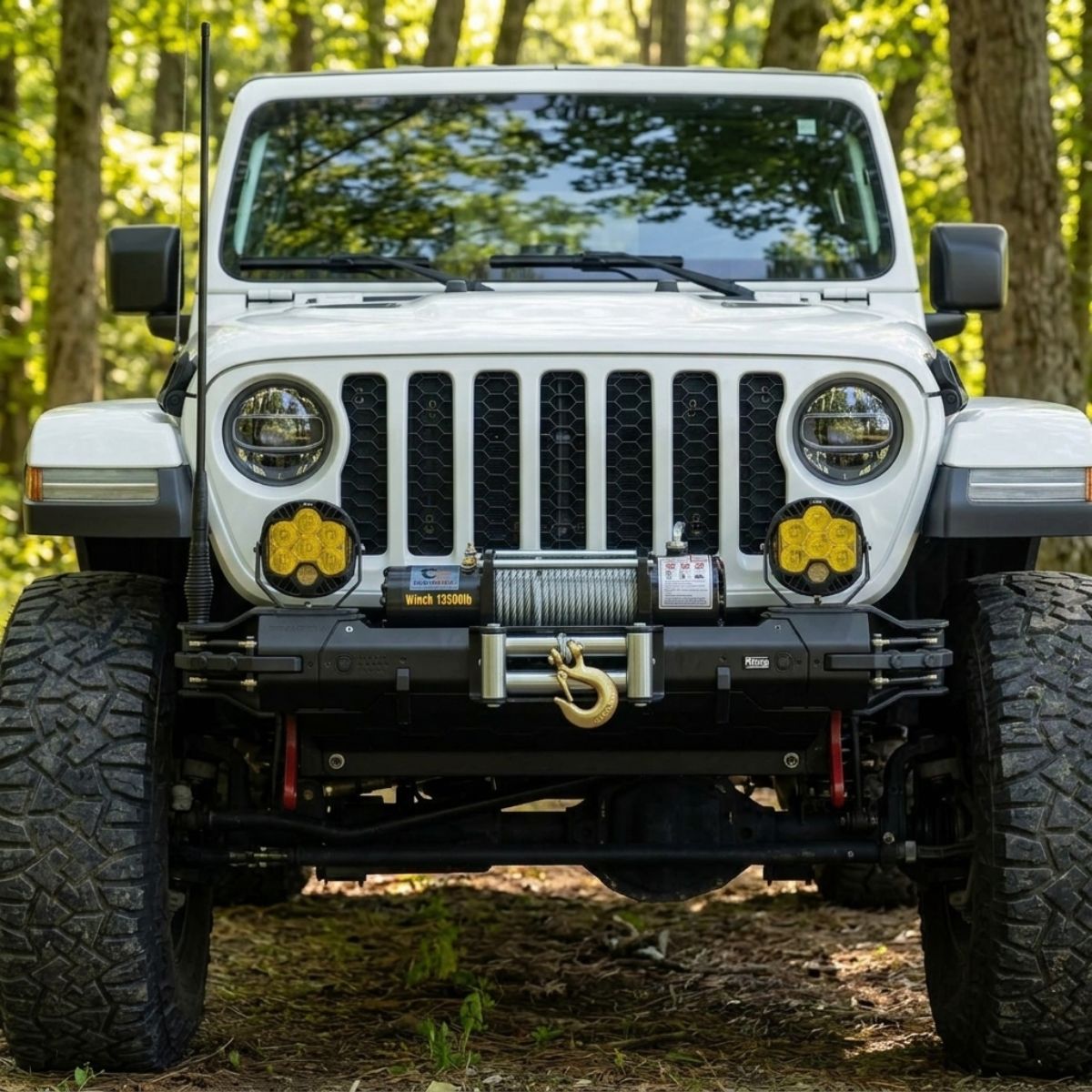

The KraftMach 13,500lb electric winch is a heavy-duty pulling tool built for off-road recovery, agricultural work, and vehicle-mounted applications. Rated at 13,500 lb (5,443 kg) on the first layer, it combines a 6.0hp series wound motor with a 3-stage planetary gear train to deliver controlled, reliable pulling performance across a range of load conditions.

IP67 rated for complete dust protection and temporary water submersion, this winch is built to work in the conditions you’d expect to need it — mud, rain, and rough terrain included. It runs on both 12V and 24V DC systems, making it compatible with the majority of 4x4s, trucks, and utility vehicles without any additional hardware.

Everything required to get up and running is in the box: 88ft (27m) of 3/8″ galvanised steel wire rope comes pre-spooled, along with the 4-way roller fairlead, alloy hook, wired remote handset, heavy-gauge battery leads, and all mounting hardware.

Key Benefits

• 13,500 lb first-layer rated pull — substantial capacity for vehicle recovery, load shifting, and off-road work
• 12V and 24V compatible — fits most 4x4s, trucks, and commercial vehicles without additional components
• IP67 waterproof and dustproof — suitable for wet, muddy, and heavily exposed environments
• Automatic in-the-drum brake — load is held securely the instant power is cut, with no manual intervention required
• Free-spool clutch — disengage the clutch to pull the rope out by hand quickly when needed; re-engage for powered operation
• 88ft (27m) of galvanised steel rope included — anti-rotation, corrosion-resistant, and pre-spooled ready to use
• 4-way roller fairlead — guides the rope evenly onto the drum from multiple angles, reducing wear and preventing jamming
• Overload protection — helps prevent motor damage when the winch is pushed towards its limits

Technical Specifications

Rated Line Pull: 13,500 lb (5,443 kg) — first layer
Voltage: 12V / 24V DC
Motor: 6.0hp / 4.5kW Series Wound
Gear Train: 3 Stage Planetary — 265:1 reduction ratio
Clutch: Sliding Ring Gear
Braking: Automatic In-The-Drum
Waterproof Rating: IP67
Wire Rope: 88ft / 27m × 3/8″ / 9.5mm, galvanised steel
Fairlead: 4-Way Roller Fairlead
Line Speed (no load): 22.0ft/min (6.8m/min)
Line Speed (rated load): 5.6ft/min (1.7m/min)
Remote Control: Wired — 12ft (3.7m) lead
Battery Leads: 2 gauge, 72″ (1.83m)
Recommended Battery: 650 CCA minimum
Overall Dimensions: 552 x 160 x 218mm (L x W x H)
Net Weight: 34kg
Mounting Bolt Pattern: 254 x 114.3mm

What’s in the Box

• KraftMach 13,500lb electric winch unit (88ft / 27m steel wire rope pre-spooled)
• 4-way roller fairlead
• Alloy forged hook
• Wired remote control handset (12ft / 3.7m lead)
• Battery connection cables (2 gauge, 72″ / 1.83m)
• Mounting hardware (bolts, screws, washers)

Important Safety Information

This winch is a pulling device only and must not be used to lift or suspend loads. Always read the full instruction manual before use. A minimum of 8 wraps of rope must remain on the drum at all times during operation. Always stand clear of the rope and load whilst the winch is operating. A battery with a minimum 650 CCA rating is recommended for reliable performance under load.
